Welcome to Kilpatrick Audio!

Since 2008 Kilpatrick Audio has been dedicated to designing and building unique hand-crafted electronic music products. We have remained small and dedicated to our primary interest in making nice things!

All our products are designed and built in-house. We design the circuitry, boards, enclosures, graphics, write the code, buy the parts, build and test everything our small workshop. When you buy one of our products you get an item made with care by the people who designed it.

Below you will find our current and past creations. Please get in touch with us if you have any questions, comments or just want to say hi. We would love to be part of your musical journey!

Buy online directly from Kilpatrick Audio

Online Store

Buy from one of our Authorized Dealers

Kilpatrick Audio sells its own products world-wide through respected dealers. Please contact an authorized dealer near you. Also do let us know if you have any questions and we will do our best to help you.

Square

Limited Edition

SQSD

Sextuple Quadraphonic Spatial Director

Six-input Quadraphonic Mixer and Joystick Controller

Two-space Buchla-compatible module

The Sextuple Quadraphonic Spatial Director or SQSD is a six-channel quadraphonic mixer and joystick controller designed for the Buchla format with full analog design and flexible CV control.

Price: $1399 USD ($1749 USD with powered boat)

Buy Now

Find out More


Dual Boat - Back Dual Boat - Top

Dual Boat

Dual Space Powered Boat (Buchla-compatible)

As part of the Sextuple Quadraphonic Spatial Director project we developed a snazzy dual powered boat. It contains a high-quality custom power supply with extremely low noise with plugs for two Buchla-style modules.

Specifications:

  • Fits two single or one dual-space module
  • Internal power supply board:
    • +/-15V at 600mA
    • +5V @ 600mA
    • +12V (passthrough from DC adapter)
    • Four 1/4" TRS audio pass-through jacks to internal Molex connectors
  • Module mounting screws (M3 x 5mm) included
  • External power supply included: 12V / 30W - North American plug
  • Light-weight aluminum construction with vents

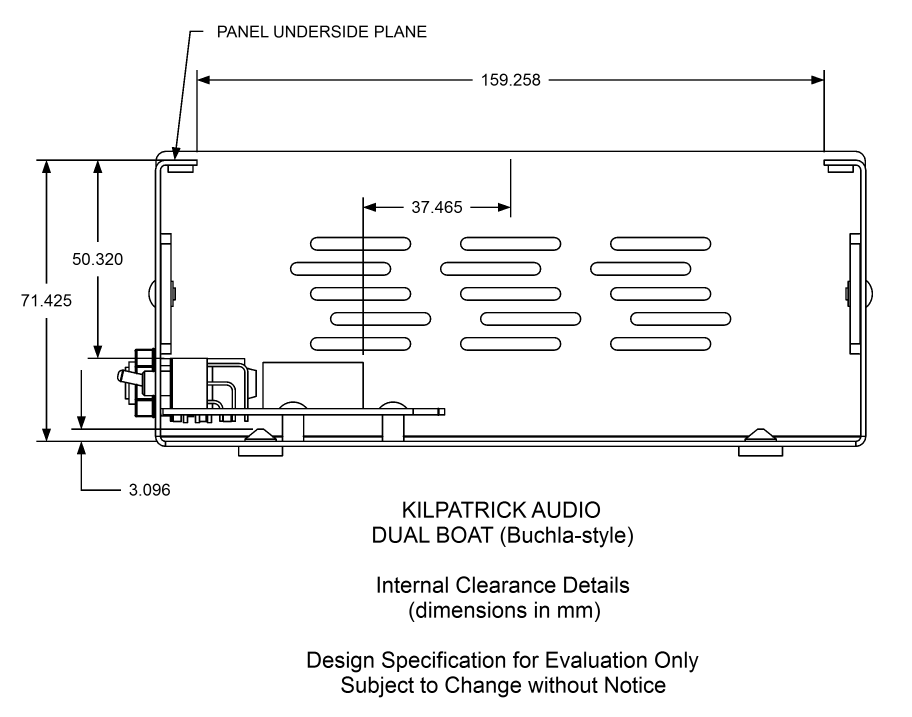

  • Dual Boat - internal clearance drawing

Price: $399 USD

Buy Now

Sine

Desktop Tools

Radiator

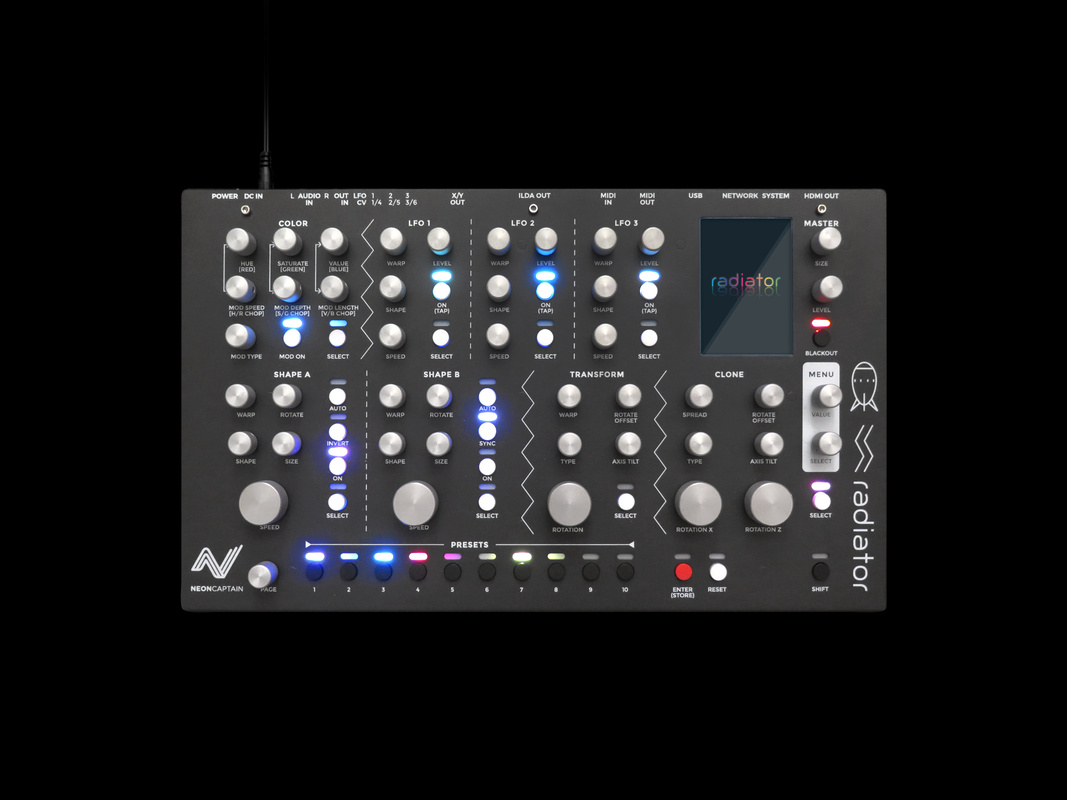

RADIATOR

Abstract Laser Synthesizer

Radiator is bringing sound and light together in a totally new way. Radiator generates laser visuals and sound. It supports laser projectors connected via ILDA, USB and Ethernet and video via HDMI.

Radiator was designed by Kilpatrick Audio in collaboration with laser artist Christopher Short.

Find out More

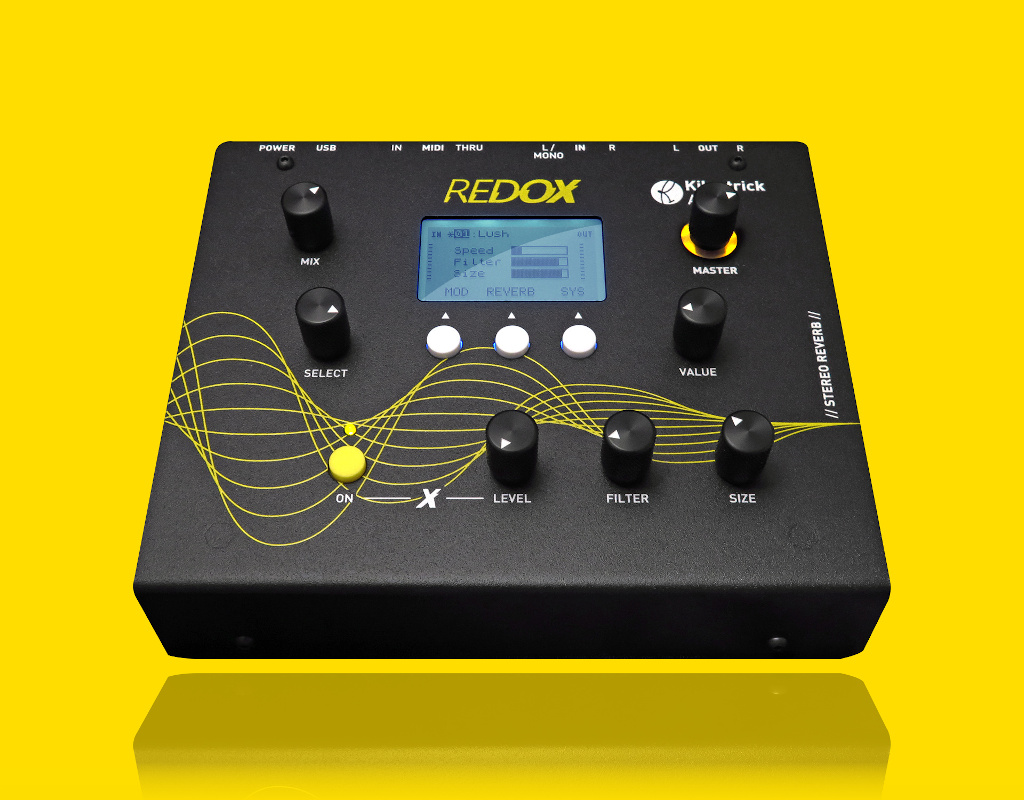

REDOX

REDOX

Stereo Reverb

Redefining the small desktop effects market, Kilpatrick Audio offers studio-grade reverb algorithms and easy to use controls in a small rugged unit.

Price $369 USD

Buy Now

Find out More


CARBON

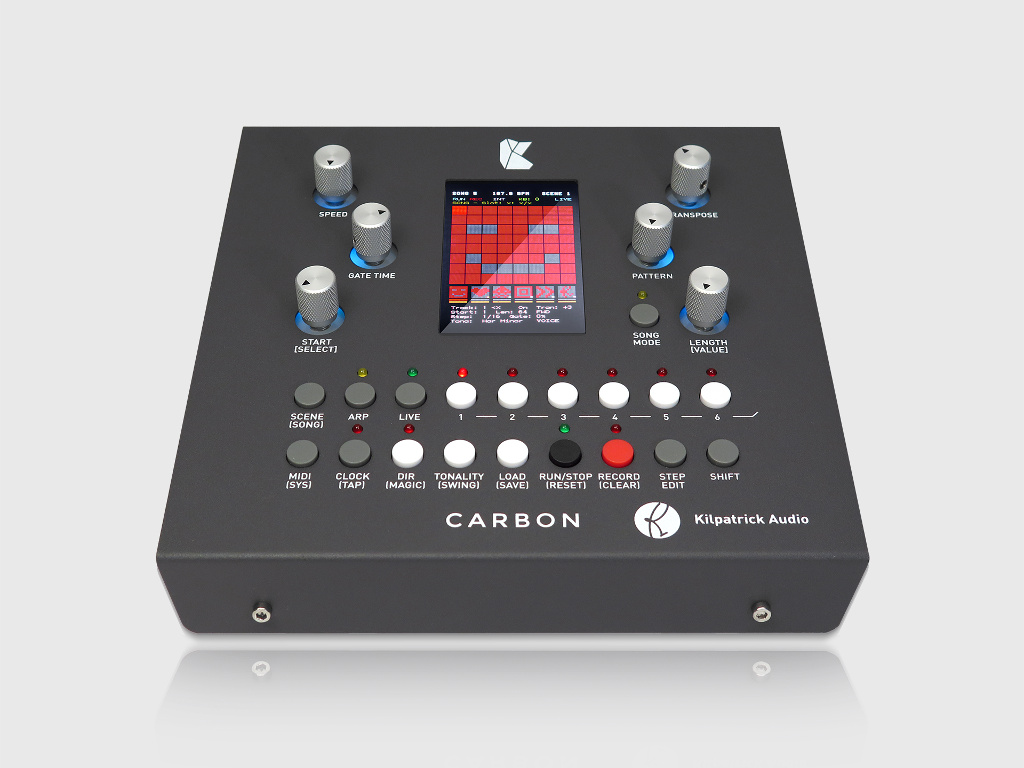

CARBON

Sequencer and Performance System

Building upon the success of the K4815 Pattern Generator, CARBON takes pattern-based sequencing to a whole new level.

Price: $499 USD

Buy Now

Find out More


PHENOL

PHENOL

Patchable Analog Synthesizer

The patchable modular synth experience in a compact, affordable package. PHENOl offers the excitement of a full-sized modular synthesizer packed into a fun table-top unit.

SOLD OUT

Find out More

Triangle

Eurorack Modular Synth

Twister

Twister

Eurorack USB Controller

Twister is a four-knob USB MIDI controller in Eurorack format. Use it together with the rest of the Virtue series to create your own custom setup.

Price: $99 USD

Buy Now

Find out More


Smasher

Smasher

Eurorack USB Controller

Smasher is a sixteen button USB MIDI controller in Eurorack format. Use it together with the rest of the Virtue series to create your own custom setup.

Price: $179 USD

Buy Now

Find out More


Slider

Slider

Eurorack USB Controller

Slider is a combination sider and button USB MIDI controller in Eurorack format. Use it together with the rest of the Virtue series to create your own custom setup.

Price: $169 USD

Buy Now

Find out More


Spinner

Spinner

Eurorack USB Controller

Spinner is an endless knob USB MIDI controller in Eurorack format. Use it together with the rest of the Virtue series to create your own custom setup.

Price: $139 USD

Buy Now

Find out More


Hubbie

Hubbie

Eurorack Four Port USB 2.0 Hub

The Hubbie is a four port USB 2.0 high-speed hub designed for use with the Virtue series of USB controllers.

Price: $99 USD

Buy Now

Find out More


K6100

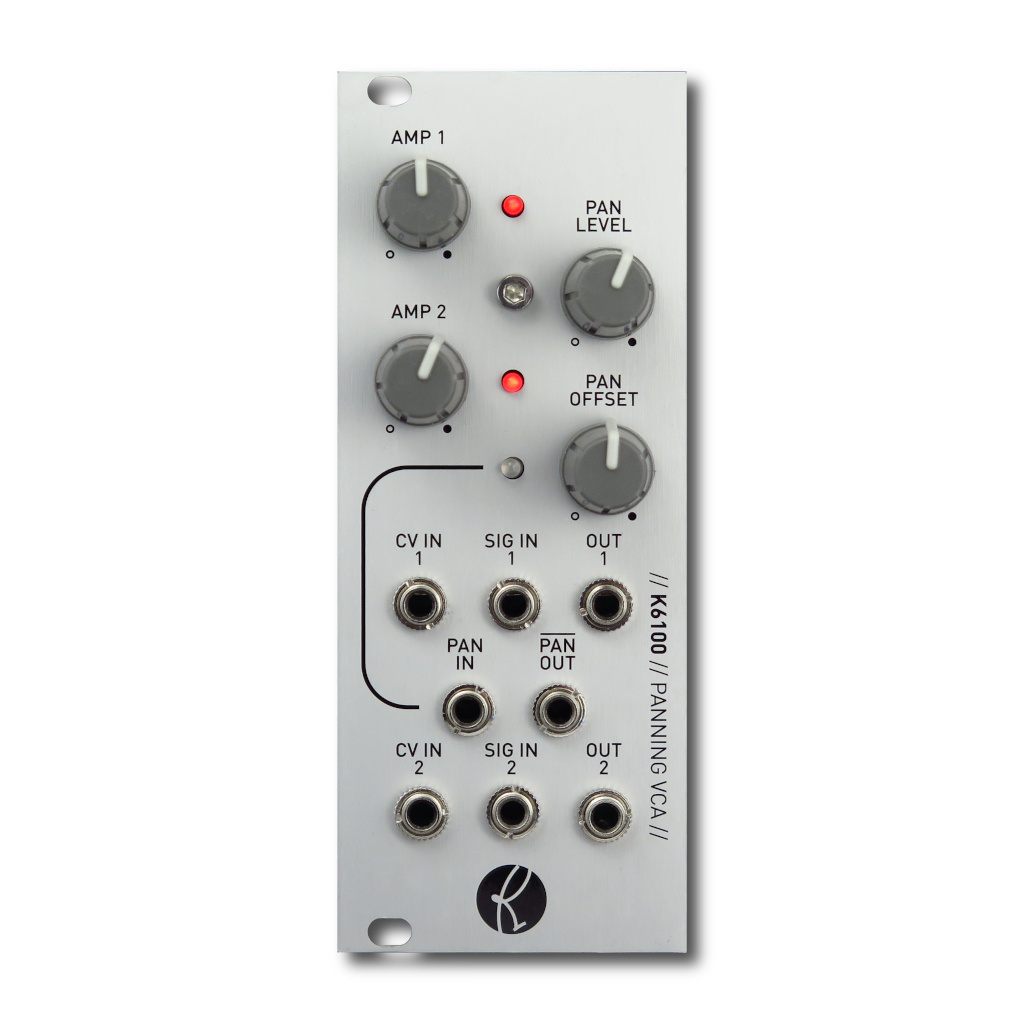

K6100 // Panning VCA

Dual High Quality Stereo VCA / Panner

The K6100 Panning VCA offers two flexible VCAs in a stylish package.

Price: $239 USD

Buy Now

Find out More

Available colors:

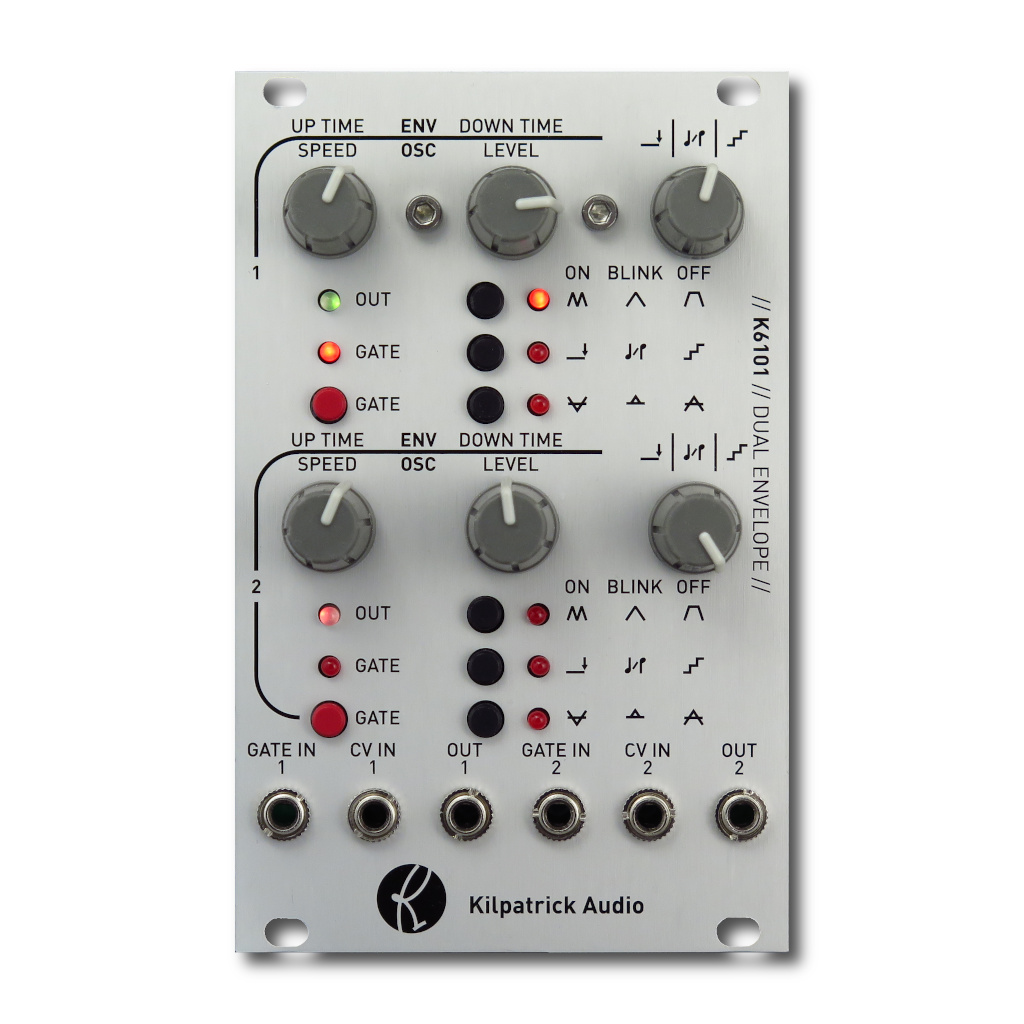

K6101

K6101 // Dual Envelope

Dual Envelope Generator / Oscillator inspired by PHENOL

By popular demand, the K6101 now offers the unique features of PHENOL envelope generators in a Eurorack module!

Price: $299 USD

Buy Now

Find out More

Available colors:

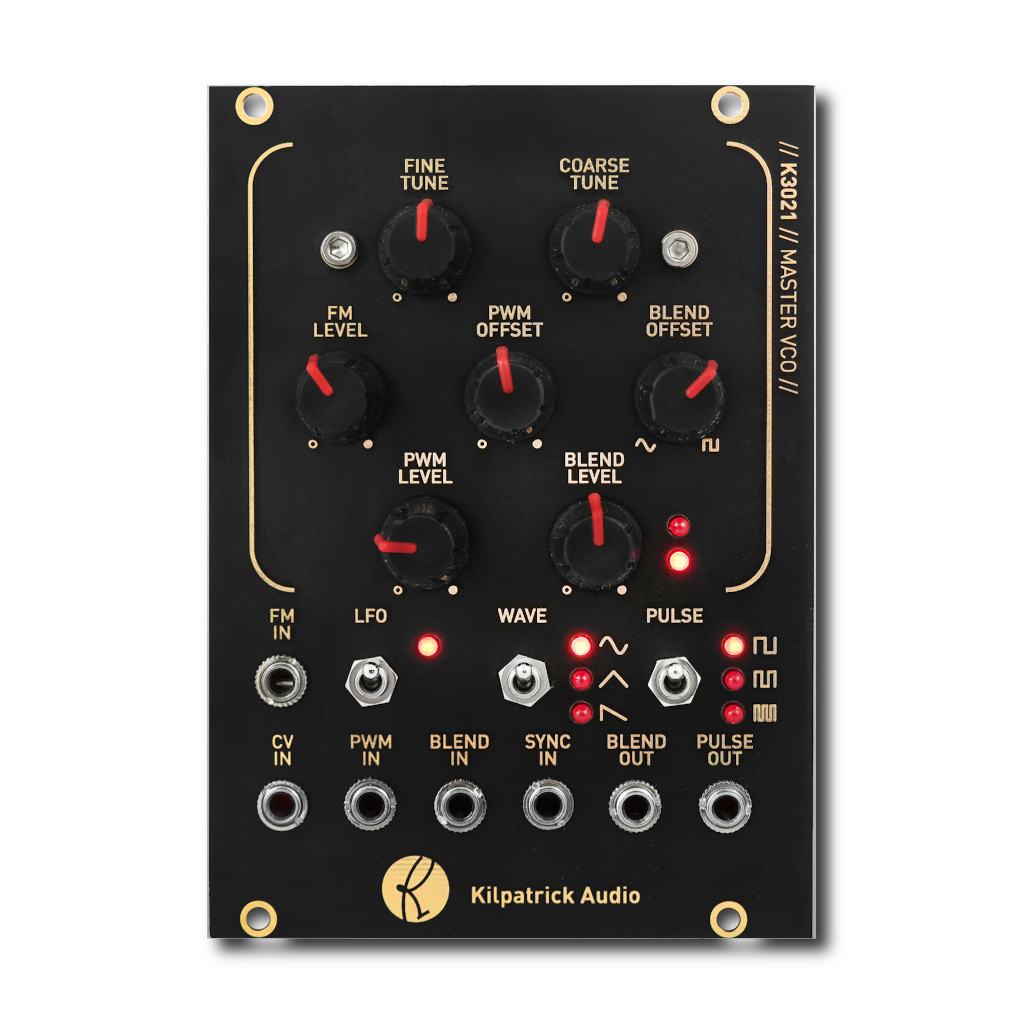

K3021

K3021 // Master VCO

Eurorack Triangle Core VCO with Waveshapers

Based on the success and sound of the K3020 Dual VCO, the K3021 Master VCO packs the same sound into a smaller and more affordable package.

Price: $299 USD

Buy Now

Find out More

Available colors:


K6501

K6501 // PHILTER

Eurorack Multi-mode Filter Inspired by PHENOL

Yes, we have done it! The K6501 PHILTER captures the incredible sound of the PHENOL filter in a Eurorack module!

Price: $199 USD

Buy Now

Find out More

Available colors:


K4815

K4815 // Pattern Generator

Eurorack CV and MIDI Pattern Generator

The K4815 Pattern Generator was an industry first in unique rhythmic and melodic sequencing and still one of our most popular models.

Price: $399 USD

Buy Now

Find out More

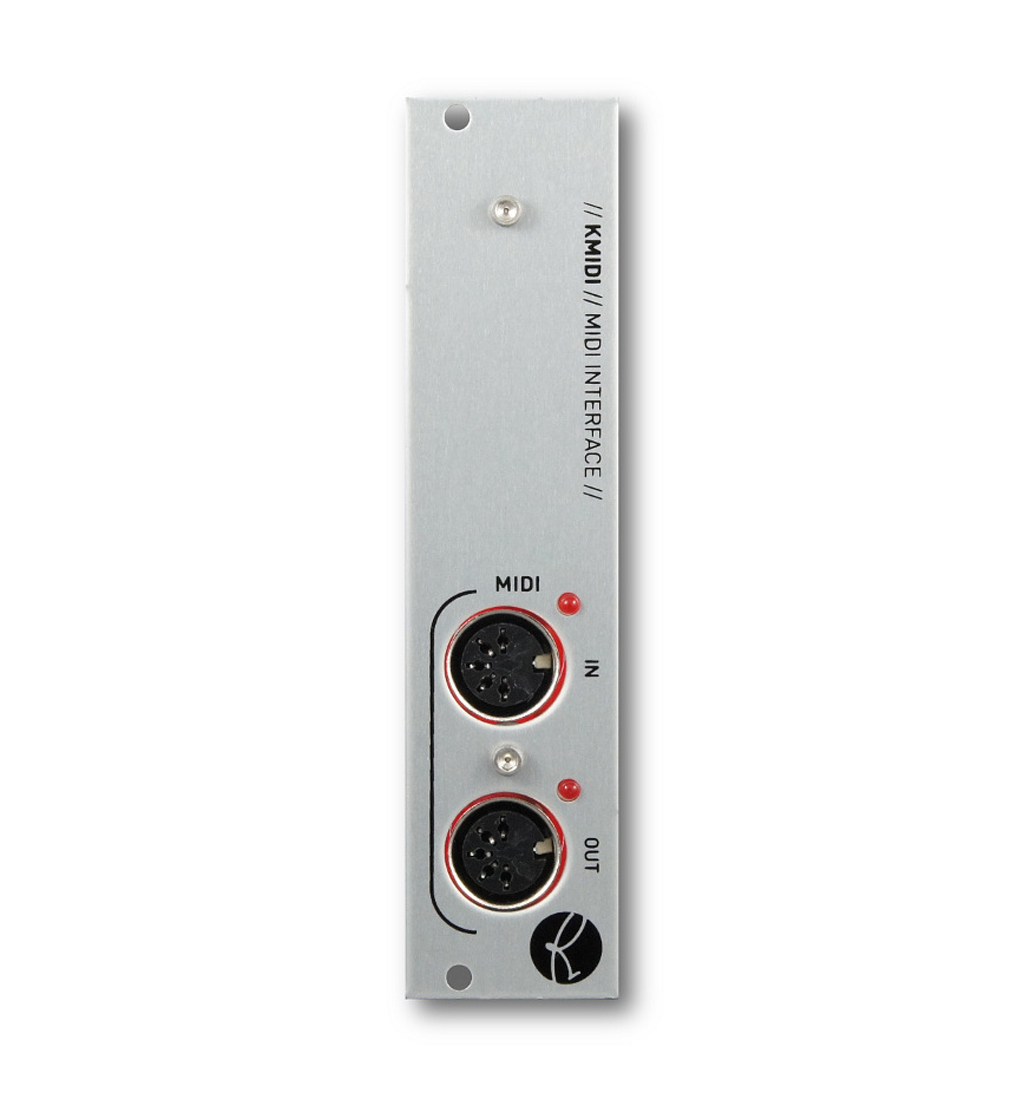

KMIDI

KMIDI // MIDI Interface

MIDI Breakout for K4815

Enjoy the power of MIDI with your K4815 module by adding MIDI ports with the KMIDI.

Price: $99 USD

Buy Now

Find out More


After Dark

Analogue Dark // Analogue Voice Series

Special Edition Eurorack Bundle

The Analogue Dark bundle combines four amazing modules together at an unbeatable price.

Kit contains:

Price: $699 USD

Buy Now

Available colors:


Super Skiff

Super Skiff™

Eurorack Enclosures

The Super Skiff™ series of Eurorack enclosures from Kilpatrick Audio are the best way to protect and show off your modular system!

Price: $119-169 USD

Buy Now

Find out More

Saw

Software

K4815-Virtual

K4815 // Pattern Generator

CV Pattern Generator - VCV Rack Edition

Taking the classic K4815 into the next decade, we have faithfully recreated the original K4815 Pattern Generator for VCV Rack. software!

Find out More


Virtue

Virtue VCV

MIDI Controller Modules for VCV Rack

A full set of free companion modules for our Virtue Eurorack USB MIDI controllers.

Find out More


Kilpatrick-Toolbox

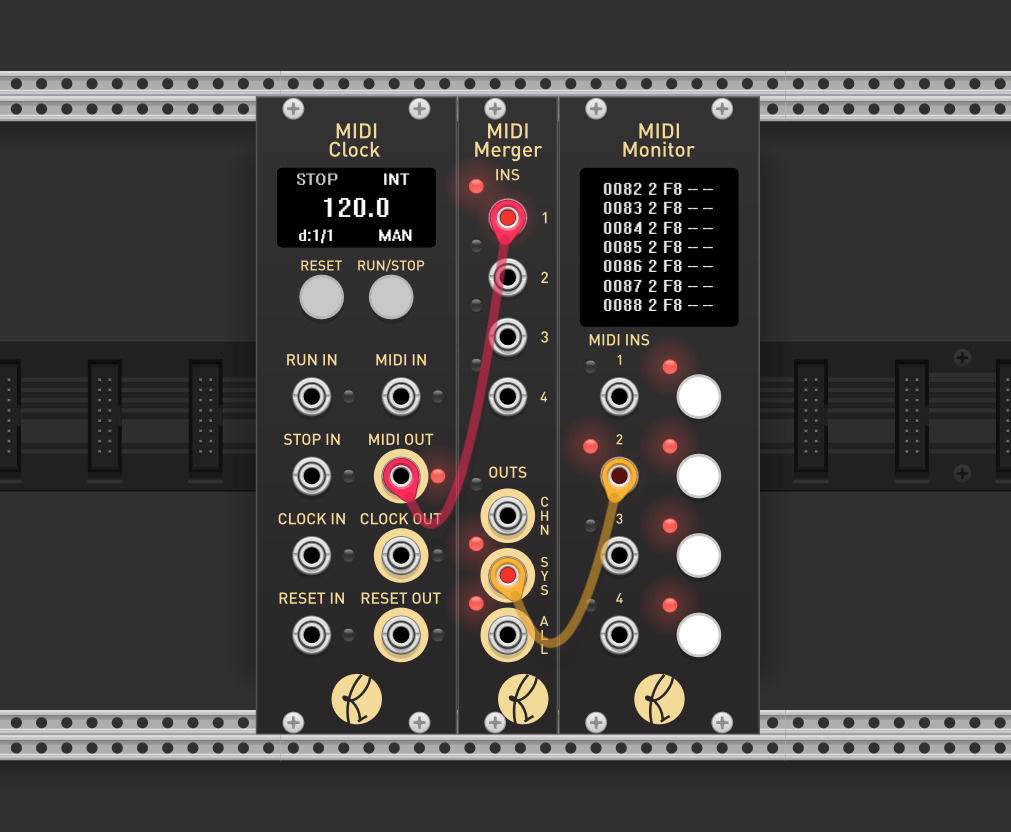

Kilpatrick-Toolbox

Useful tools for VCV Rack

The Kilpatrick-Toolbox plugin contains a number of useful modules for VCV Rack. These modules are free and open source.

Find out More

Sine

Accessories

PHENOLgo!

PHENOLgo!

USB power supply for PHENOL

Power your PHENOL or CARBON from a USB battery bank or solar panel for jamming on the go.

Price: $69 USD

Buy Now

Find out More


Banana Cables

Banana Cables

High-quality Stackable Banana Cables - 10 pack

Affordable, high-quality banana cables designed specifically for modular synths.

Price: $55 USD

Buy Now

Find out More


Banana Mini

Banana Mini Adapter Kit

Banana to Minijack Adapter Kit - 5 pack plus ground

Banana to minijack adapters so you can patch between banana and Eurorack systems easily.

Price: $39 USD

Buy Now

Find out More


PHENOL T-shirt Banana T-shirt CARBON T-shirt

T-Shirts

Styles Upon Styles

A great way to take Kilpatrick Audio with you wherever you go!

Price: $25 USD

Buy Now


Int PSU

International Power Supply 24V

Replacement 24V Power Supply for PHENOL and CARBON

Replacement power supply for use with PHENOL and CARBON. Comes with a set of interchangeable plugs and approved for use in most regions of the world.

Price: $25 USD

Buy Now

Triangle

Legacy Products

Long departed from our workbenches, these products continue to inspire musicians around the world. We keep these pages here as a showcase of our previous work, and to provide specs, manuals and other information for those who continue enjoying them.

K4816

K4816 // Pattern Generator

Buchla-format CV and MIDI Pattern Generator

Building on the popular K4815 Pattern Generator, the K4816 offers Buchla users this incredible module with a built-in MIDI interface, CV control inputs and many new features.

Contact Noisebug for availability.

More Product Info


KFormat

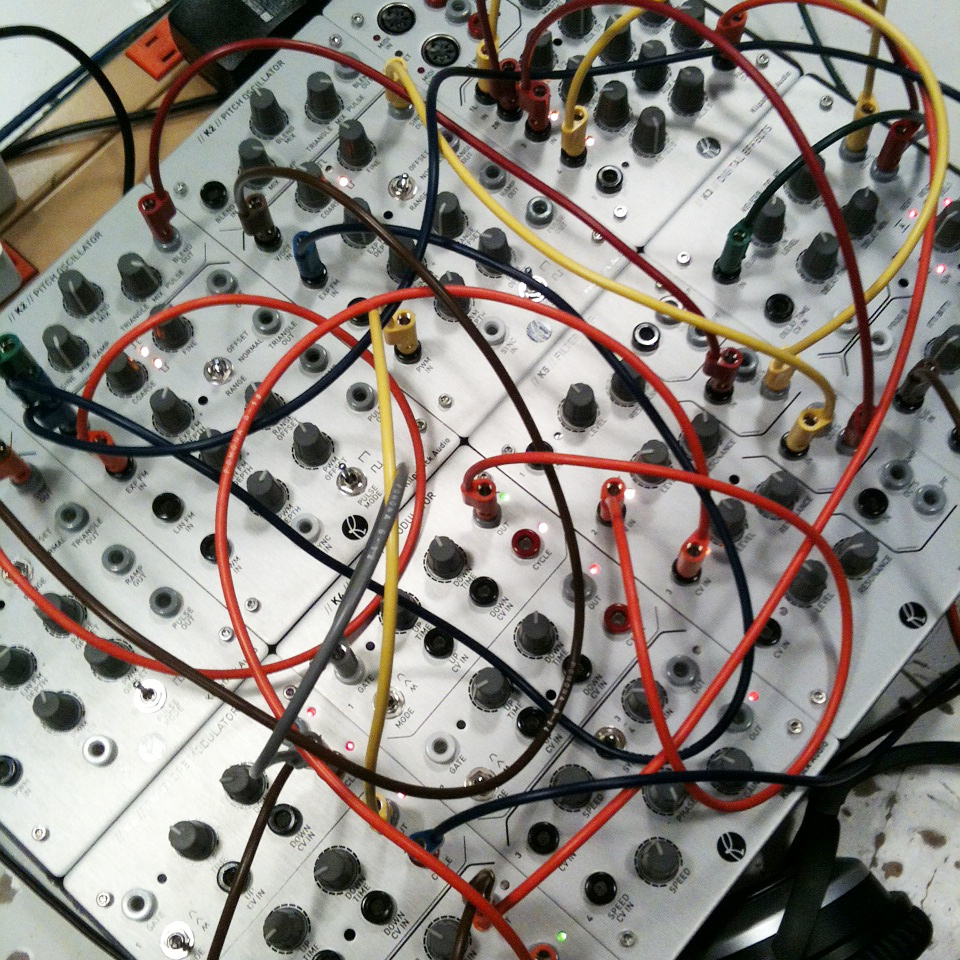

Kilpatrick Format Synthesizer

Complete Modular Synthesizer Systems from Kilpatrick Audio

The Kilpatrick Format Synthesizer is designed to offer the best combination of features, ease of use, and performance.

No longer available.

More Product Info

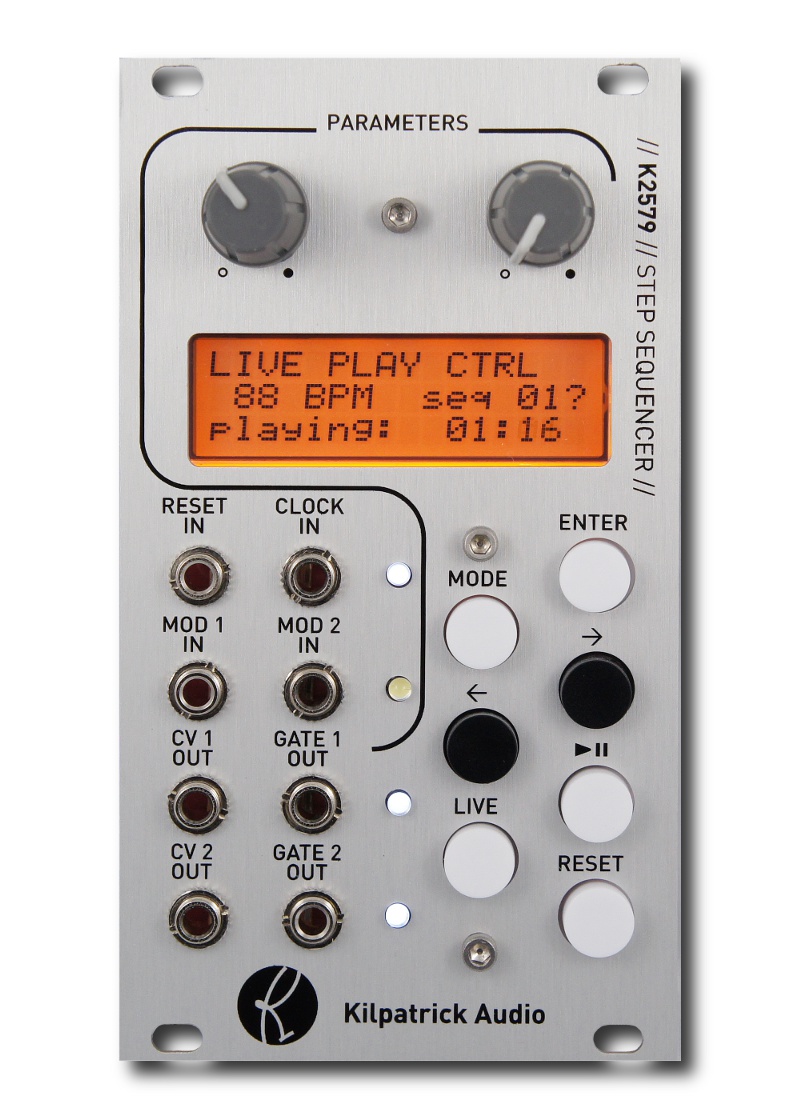

K2579

K2579 // Step Sequencer

Eurorack MIDI / Analog Step Sequencer

Perform with sequences in a unique way with the K2579 Step Sequencer.

No longer available.

More Product Info


K3020

K3020 // Dual VCO

Eurorack Dual Voltage Controlled Oscillator

Explore modular synthesis like never before with the K3020 Dual VCO.

No longer available.

More Product Info


K3021

K1600 // MIDI Converter

Eurorack MIDI Converter

Unlock the power of your modular with the K1600 MIDI Converter.

No longer available.

More Product Info


KBOX

KBOX // Enclosure

Eurorack 3U Enclosure with K1205 Power Supply

Start building your modular synthesizer with the KBOX Enclosure.

No longer available.

More Product Info


KONVERTER

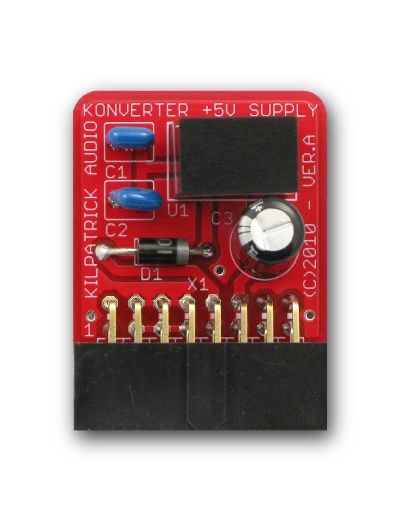

KONVERTER // +5V Supply

High-efficiency +12V to +5V Power Module

Use modules that require +5V power in your +12/-12V only case with the addition of a KONVERTER +5V power supply.

No longer available.

More Product Info


Lush Puppy

Lush Puppy

Stereo Reverb with Delay

The Lush Puppy combines two incredible hand-tuned reverb algorithms with a slap-back delay effect for a flexible and great sounding pedal for any playing style.

No longer available.

More Product Info


Echo Centric

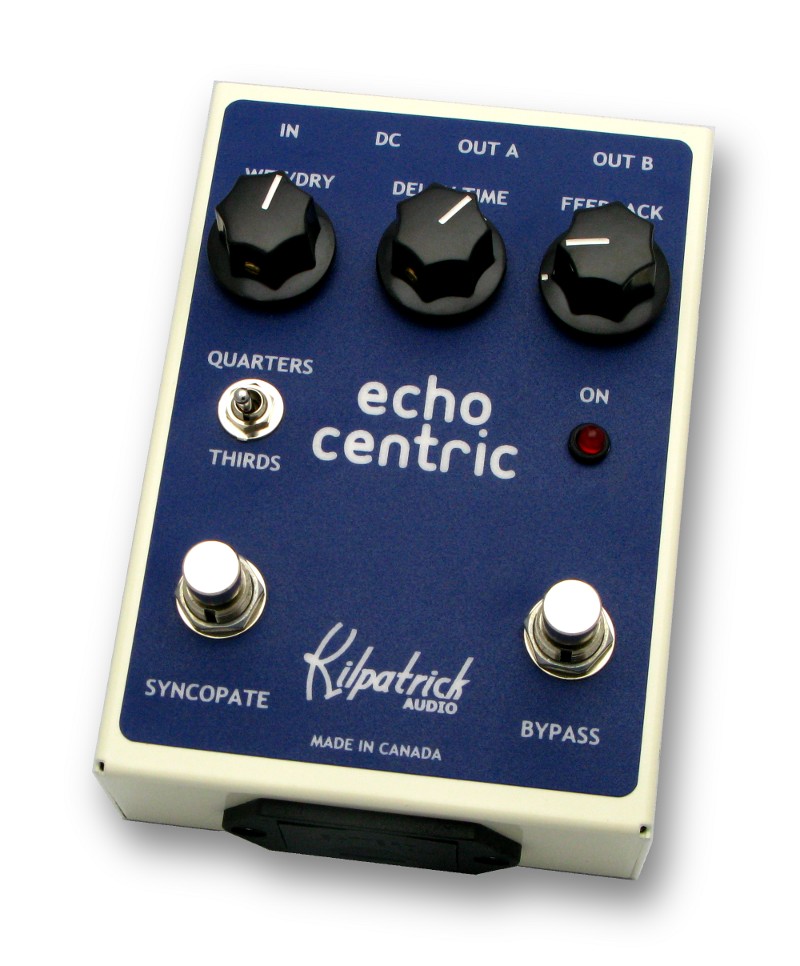

Echo Centric

Echo with Stereo Syncopation

The Echo Centric is a warm sounding echo pedal with up to one second of delay time and adjustable feedback.

No longer available.

More Product Info


Vibro Man

Vibro Man

Touch-sensitive Tremolo, Vibrato and Vibrating Filter

Simply the best tremolo and vibrato pedal available, the Vibro Man can modulate your socks off, offering both tremolo and vibrato effects which can be used together

No longer available.

More Product Info


Chora Lush

Chora Lush

Rich Chorus with Reverb

The perfect companion for acoustic guitars with pickups, the Chora Lush offers two different chorus sounds with adjustable depth and speed with built-in reverb.

No longer available.

More Product Info


Kill Switch

Kill Switch

Auto-fire Tremolo and Death-Ray Generator

More than just a guitar effect, the Kill Switch is an effect generator with built-in monophonic synth voice.

No longer available.

More Product Info


Striptease

Striptease™

Ribbon Controller

Bringing a new level of expression to guitar and synth players, Striptease™ allows real-time control of effect parameters at the touch of a finger.

No longer available.

More Product Info
